Everything
you need to get started with Advanced Digitrax Command Control.
Evolution
is perfect for most home and club layouts wanting Duplex Radio
control out of the box.
It offers
excellent speed control, prototypical consisting, the full
range of programming features and much more.
Maximum
capacity, maximum features. Take it to the Max with Evolution!

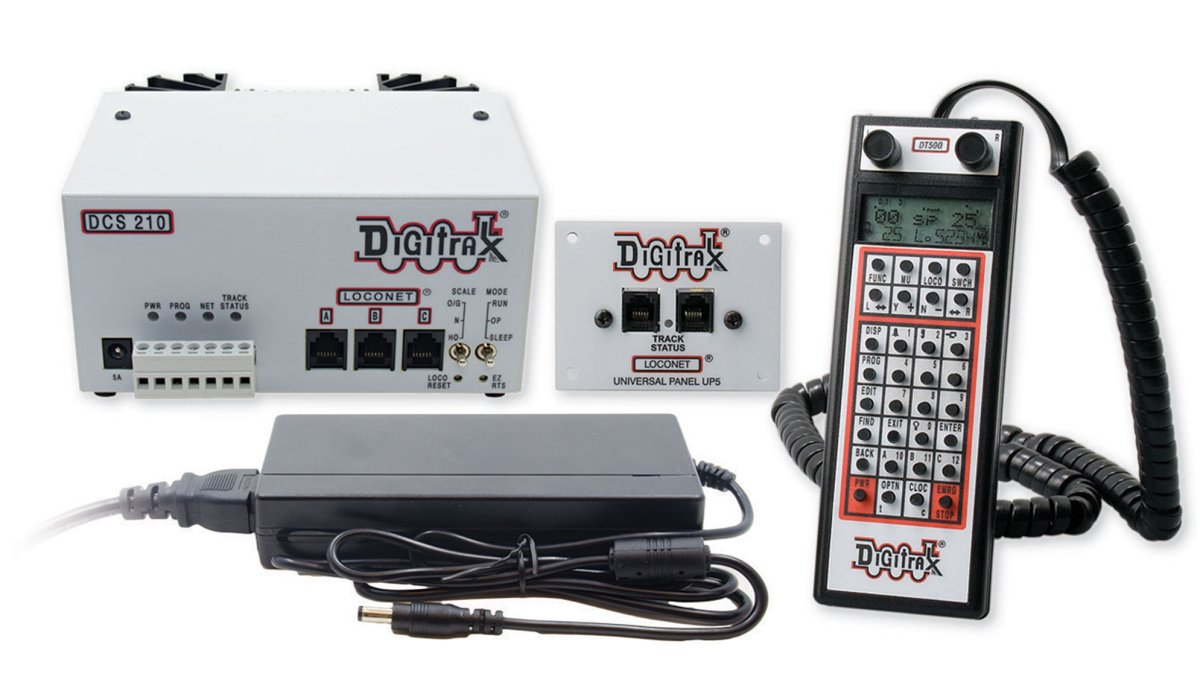

Evolution
Duplex Set Includes:
DCS210 Command Station/Booster With Intelligent AutoReverse
DT500D Super LocoNet Throttle (Duplex Radio)
UR92 Duplex Transceiver Panel
PS615 Power Supply
One LT1 LocoNet Cable & Decoder Test Kit
Evolution Manual
Digitrax Decoder Manual
The DT500D
Advanced Super Throttle & DCS210 Advanced Command Station
Offers
User-interface makes DCC simple.
Dual throttle knobs give you control of two locos at
the same time and makes consisting easy.
Full numeric keypad for loco selection, function control,
and decoder programming.
Simplified 4 digit addressing.
Easy address browsing and selection.
User-friendly text messages to guide you.
Click encoders for smooth speed control.
Multi-line LCD display puts all information at your
fingertips.
Convenient step-by-step throttle option set up
Infra-ready out of the box (with UR90 sold separately).
Ready for transponding and cab signaling.
Simplified throttle option setup.
Big System
Capacity for Big Layouts
Run up to 100 addresses at the same time on your system.
Run up to 100 throttles at the same time on your system.
Over
9000 Locomotive Addresses
Address 00 for operation of one loco or MU consist without
decoders
Two Digit Addressing is easy to use. (Address 01-127)
Four Digit Addressing lets you use the road number of
your engines as their addresses. (Address 0128-9000+)
5 or
8 Amps of Power to Run More Trains
Selectable Scale Voltage for Safe Operation in ALL Scales
Customizable Voltage Settings
5 amps of power with included PS615 power supply
8 amps with PS2012 power supply (sold separately)
Function
Control
Control 30 functions (F0Fwd, F0Rev, and F1-F28).
Function 2 is a special non-latching key that can be
used to sound the horn for as long as the key is held down.
Constant brightness lighting. Headlights can be directional
or independently controlled (depending on decoder capabilities).
Two DCC
Outputs are Better than One!
Use one output for programming decoders while the other
runs the layout. No need to shut down the layout to program
decoders!
Use one output for a braking section while the other
runs the layout.
Decoder
Programming
Built in read/write programmer lets you program and
read back CV values.
Supports Paged programming (Digitrax preferred method).
Also supports direct, register and ops mode programming
Consisting
Supports Universal consisting (Digitrax preferred method).
Allows ALL locos to be consisted prototypically, even analog
locos.
Advanced consisting and Basic consisting, too!
Nested consisting where consists can be consisted together.
Stationary
Decoders, Turnout Control & Turnout Position Reporting
Access to stationary decoder control for turnouts and
other devices.
DT500 reports turnout position based on last command
sent.
Control 2000+ stationary decoder addresses.
Routes
Turnout List/Route capability to simplify complex yard
operations.
EZ routes button for simplified Command Station route
programming
Customizable
System Options
Turn audible warnings on or off.
Set up purging options.
Multi-format command station mode.
Loco Reset button for easy system purging
UP5 Universal
Panel
Makes LocoNet hook up simple!
2 LocoNet jacks for hooking up your LocoNet network.
3 throttle jacks for hooking up throttles and other
non-RailSync devices.
Expandability
Evolution is just the beginning for large, complex layouts
that emphasize prototypical operations.
With LocoNet you can add more boosters, throttles, power
management, detection, transponding, signaling and much more.
DCS210 comes with 3 LocoNet ports for Easy expandability
Other
Advanced Features
IPL updatable firmware for continued product improvements
Device Query and Device Statistics to help with troubleshooting
Input Mode to help set up detection on your layout
Uses Expanded slots
Click
Here for Manual.
